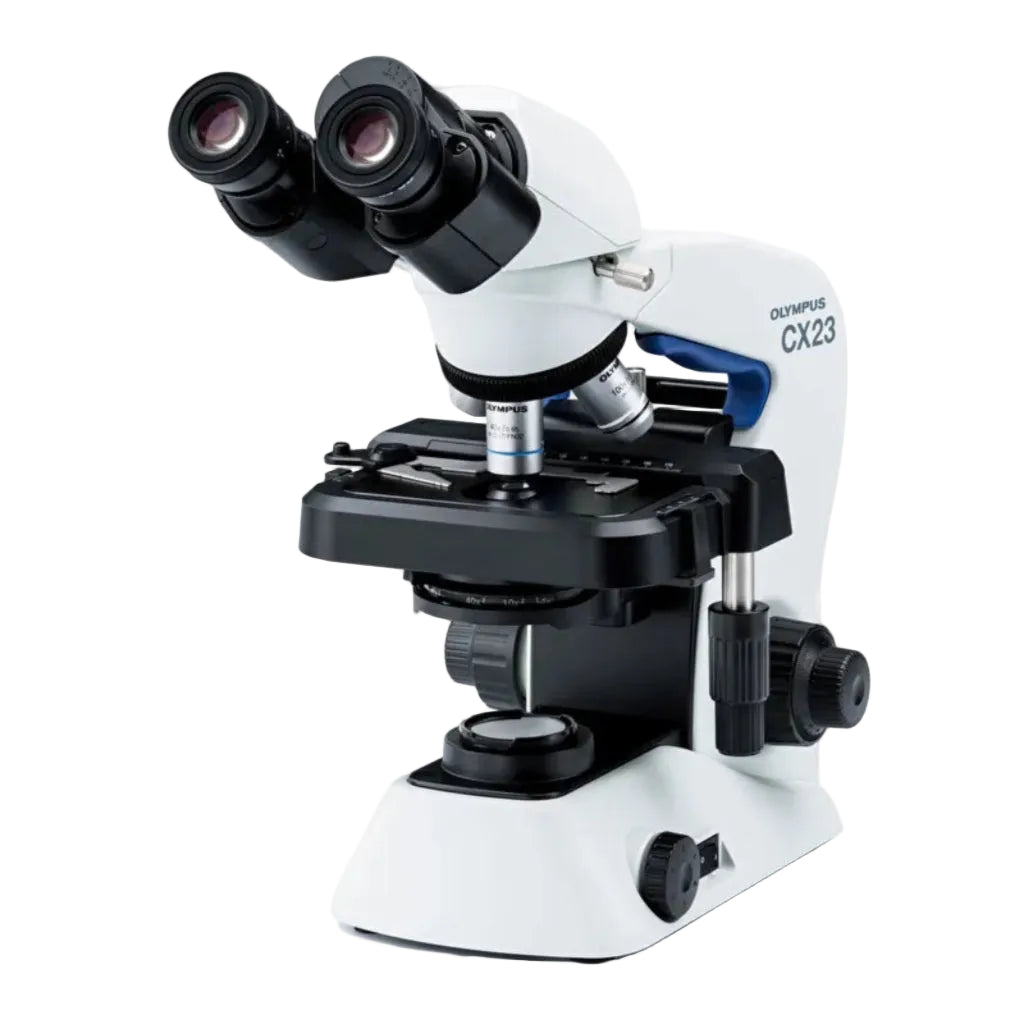

Olympus CX23 Microscope

Estimated Delivery Time: 14–20 days

The Olympus CX23 is a high‑quality transmitted‑light microscope designed for brightfield microscopy and built with the durability, optical precision, and ergonomic comfort expected from Olympus. Its standard configuration includes a rear‑facing 4× nosepiece and plan achromatic objectives that deliver excellent image flatness, clarity, and sharpness across the entire field of view.

Engineered for ease of use, the CX23 features a backward‑oriented nosepiece, allowing quick specimen exchange and smooth workflow during routine examinations. The 30° tilted binocular tube includes bilateral dioptre adjustment and supports an interpupillary distance of 48–75 mm, ensuring comfortable viewing for all users. The 10× eyepieces (FN 20) provide a wide, bright field of vision and include an anti‑fungus coating for long‑term reliability.

This model is widely used in training environments, educational settings, and medical laboratories, offering robust performance and dependable optical quality.

Key Features

• Olympus CX23 transmitted‑light microscope for brightfield microscopy

• 4× rear‑facing nosepiece for easy specimen handling

• Plan achromatic objectives: 4×, 10×, 40×

• Optional 100× oil immersion objective for advanced microscopy

• All objectives include anti‑fungus coating

• 30° inclined binocular tube with bilateral dioptre adjustment

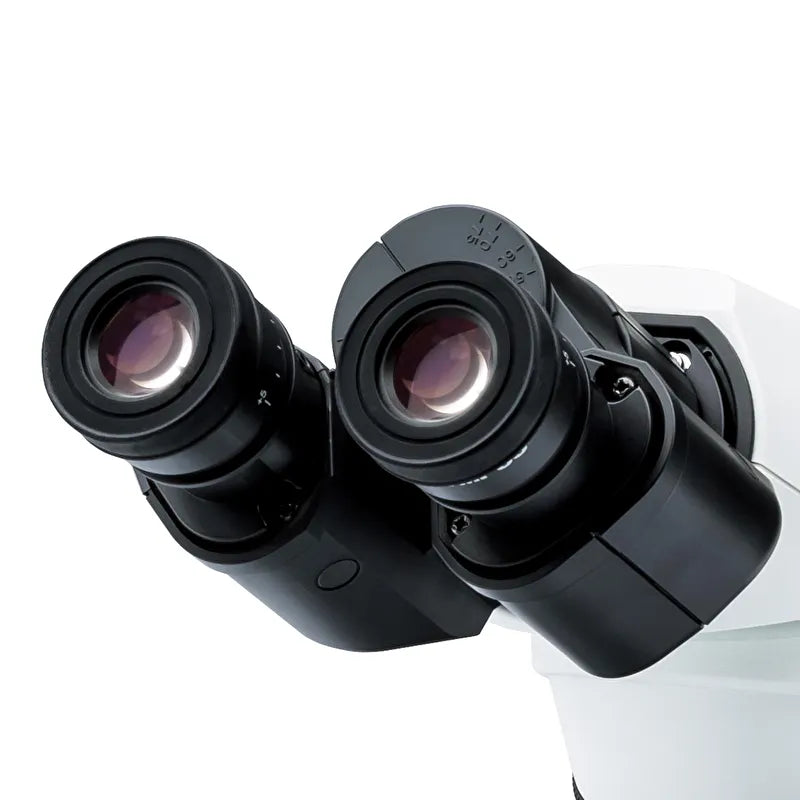

• 10× eyepieces, FN 20, anti‑fungus coated

• Adjustable interpupillary distance: 48–75 mm

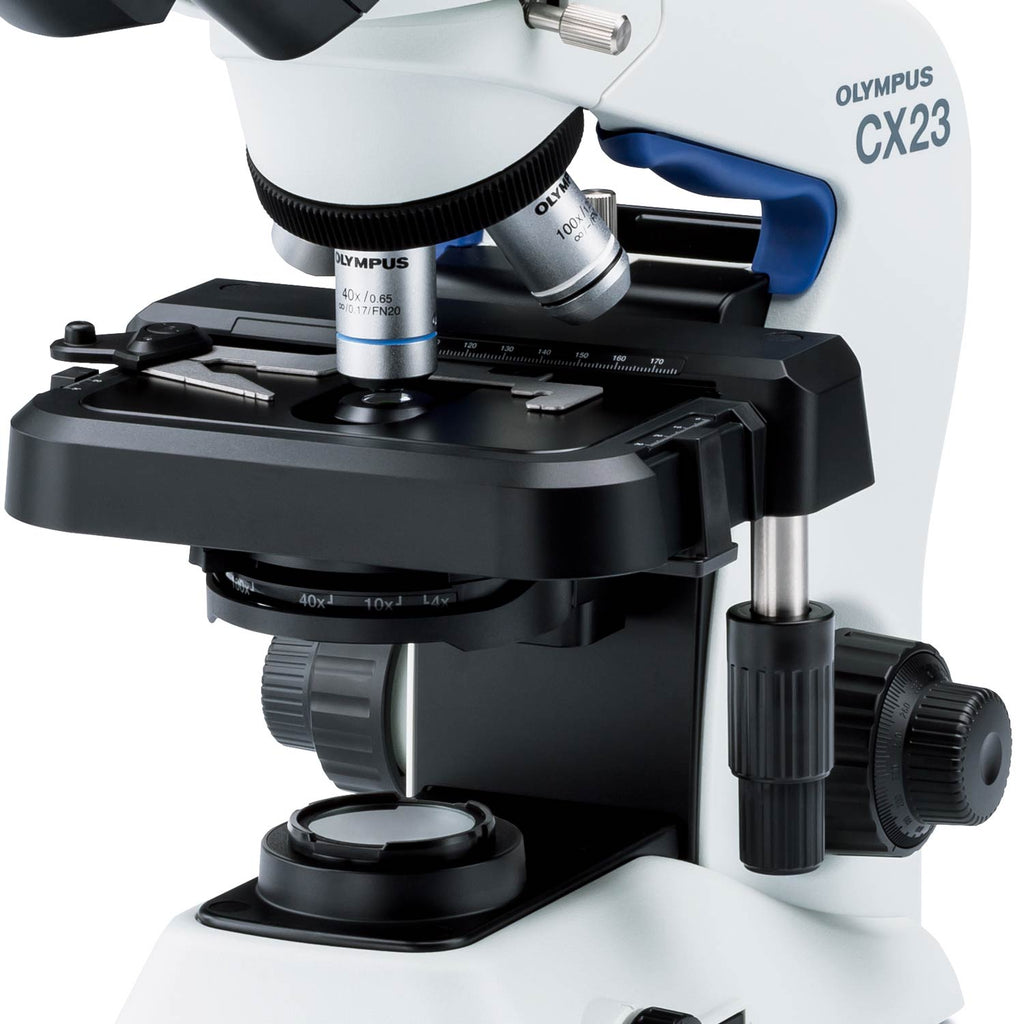

• Height‑adjustable cross table with standard specimen holder

• LED illumination (0.5 W) with reduced blue content for natural colour reproduction

• Abbe condenser NA 1.25

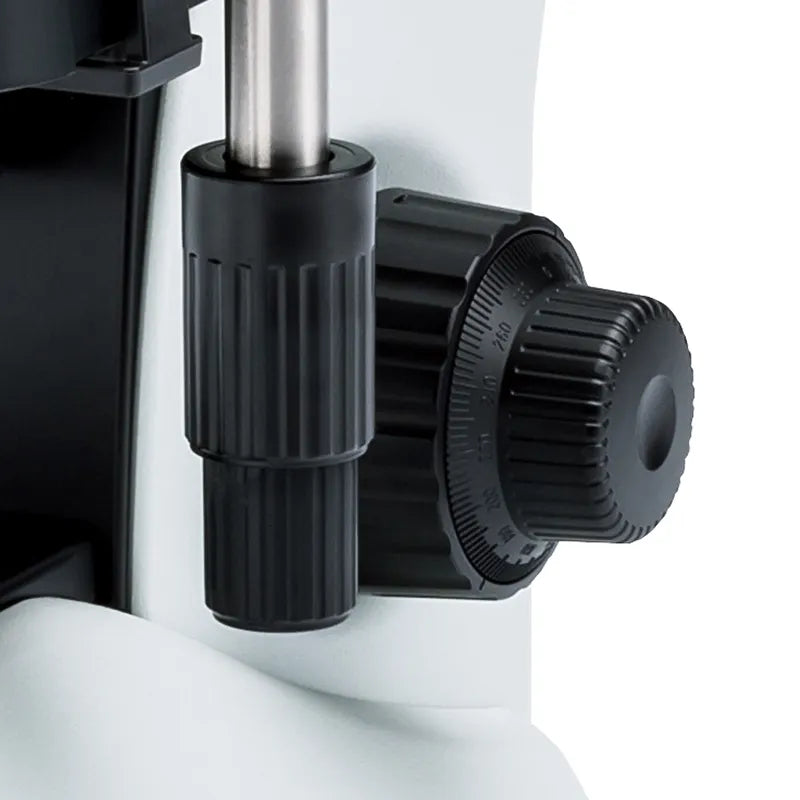

• Coarse and fine focus controls on the right side

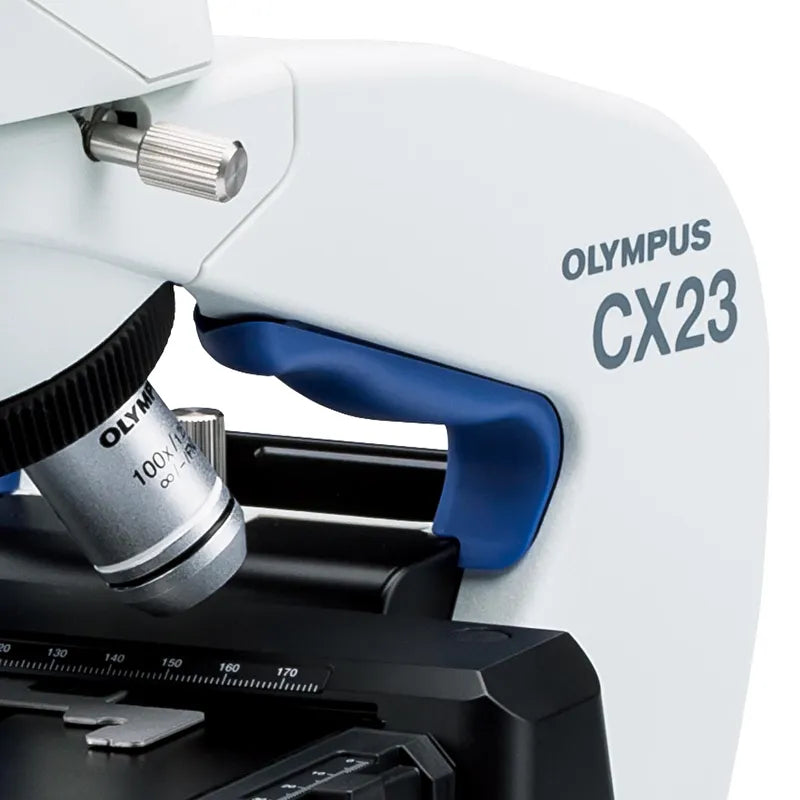

• Integrated coloured carrying grip for safe transport

• Rear compartment for power‑cable storage

• Built‑in eyelet for anti‑theft cable

• Weight: approx. 5.9 kg

• Delivery contents: microscope, power cable, protective cover, user manual

Configuration Options

• Standard configuration

• Standard configuration with 100× oil objective

• Standard configuration with phototube for attaching a camera and documenting research

Product Identification

Manufacturer: Olympus

Model: CX23
